Layout dimensions
Measurements are from the HDL 2026 pricebook. Component dimensions are width × depth × height in inches.
| Calypso adjustable base height | 22–48 in, excluding the desktop |
|---|---|

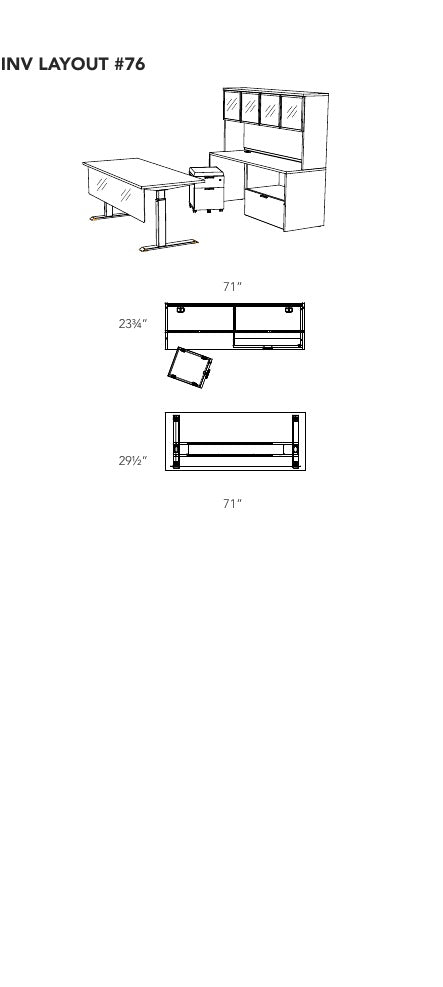

| Plan measurements shown | 71 in, 29½ in, 23¾ in |
This layout contains separate furniture units or has no overall footprint labelled in the pricebook. The measurements below are individual component sizes; use the layout drawing to plan their placement.
Included component sizes
| Component | Width × depth × height |
|---|---|
| INV-2472SH — CREDENZA SHELL | 71 in × 23.75 in × 29 in |
| INV-3672H — 72” OPEN HUTCH | 71 in × 15 in × 35.5 in |
| INV-72HDRS-AL — 72” ALUMINIUM FRAME GLASS DOORS | 17.5 in × 0.75 in × 16.5 in |
| INV-3672TB — TACK BOARD | 68.25 in × 0.5 in × 15.75 in |
| INV-2236OLFX — OPEN LATERAL FILE STORAGE - NO TOP | 35.5 in × 21.75 in × 28 in |
| INV-MPF — 21” MOBILE PEDESTAL - FULL CARTON | 15.75 in × 18.75 in × 21.75 in |
| INV-CUSH — MOBILE PEDESTAL SEAT CUSHION | 15.75 in × 18 in × 2.5 in |
| INV-3072TOP — 72” RECTANGULAR TOP | 71 in × 29.5 in × 1 in |
| INV-MP1-1566PLX — PLEXIGLASS HANGING MODESTY PANEL | 61.25 in × .25 in × 15 in |
For corner desktops, a depth written with a slash indicates the two surface depths. Dimensions describe furniture and panels, not the extra space needed for chairs or walkways.
Complete Innovations series layout from Heartwood Distributors Ltd. Includes the components listed below. See the layout illustration for dimensions and arrangement.
| Item | Description | Quantity |
|---|---|---|
| INV-2472SH | CREDENZA SHELL | 1 |
| INV-3672H | 72” OPEN HUTCH | 1 |
| INV-72HDRS-AL | 72” ALUMINIUM FRAME GLASS DOORS | 1 |
| INV-3672TB | TACK BOARD | 1 |
| INV-2236OLFX | OPEN LATERAL FILE STORAGE - NO TOP | 1 |
| INV-MPF | 21” MOBILE PEDESTAL - FULL CARTON | 1 |
| INV-CUSH | MOBILE PEDESTAL SEAT CUSHION | 1 |
| INV-3072TOP | 72” RECTANGULAR TOP | 1 |
| CAL-E1-2LEG | STRAIGHT ELECTRIC HEIGHT ADJUSTABLE 2 LEG BASE | 1 |
| INV-MP1-1566PLX | PLEXIGLASS HANGING MODESTY PANEL | 1 |
Included items are limited to the components listed above. Please contact us to confirm finish selection, stock availability, delivery and installation.
Choose your finish
Autumn Maple (AM)
Black Walnut (BW)
Evening Zen (EZ)
Grey Dusk (GD)
Hardrock Maple (HM)
Royal Mahogany (RM)
Sugar Maple (SM)
Winter Wood (WW)
Choose your finish from the product options above. The finish applies to Innovations laminate surfaces; metal, glass and upholstered parts retain their standard finishes. Photos may show accessories; only the components listed above are included. Finish samples may vary slightly from actual material.
