Layout dimensions
Measurements are from the HDL 2026 pricebook. Component dimensions are width × depth × height in inches.
| Calypso adjustable base height | 22–48 in, excluding the desktop |
|---|---|
| Shown plan footprint | 71 in × 71 in (approximately 180.3 cm × 180.3 cm) |
Included component sizes
| Component | Width × depth × height |
|---|---|
| INV-362472ECM — 72” NON-HANDED EXTENDED CORNER MODULE | 71 in × 35.5/23.75 in × 1 in |
| INV-2436RSBR — NON-HANDED RETURN SHELL/BRIDGE | 35.5 in × 23.75 in × 29 in |
| INV-GH14 — 14” HALF GABLE WITH WIRE ACCESS | 1 in × 14 in × 28 in |
| CAL-E1-2LEG-CMF — CORNER MODULE FOOT | 3.25 in × 33.5 in × 1 in |
| INV-MP1-1566PLX — PLEXIGLASS HANGING MODESTY PANEL | 61.25 in × .25 in × 15 in |
| 100-MMPF — METAL MOBILE PEDESTAL - FULL CARTON | 15.5 in × 22.5 in × 20.5 in |
| 100-MMPF-CUSHFA — METAL MOBILE PEDESTAL CUSHION | 15.25 in × 22.5 in × 2 in |
For corner desktops, a depth written with a slash indicates the two surface depths. Dimensions describe furniture and panels, not the extra space needed for chairs or walkways.

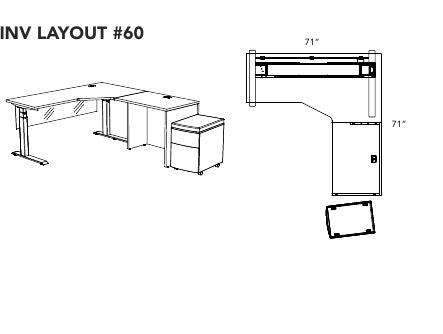

Complete Innovations series layout from Heartwood Distributors Ltd. Includes the components listed below. See the layout illustration for dimensions and arrangement.
| Item | Description | Quantity |
|---|---|---|
| INV-362472ECM | 72” NON-HANDED EXTENDED CORNER MODULE | 1 |
| INV-2436RSBR | NON-HANDED RETURN SHELL/BRIDGE | 1 |
| INV-GH14 | 14” HALF GABLE WITH WIRE ACCESS | 1 |
| CAL-E1-2LEG | STRAIGHT ELECTRIC HEIGHT ADJUSTABLE 2 LEG BASE 71” | 1 |
| CAL-E1-2LEG-CMF | CORNER MODULE FOOT | 1 |
| INV-MP1-1566PLX | PLEXIGLASS HANGING MODESTY PANEL | 1 |
| 100-MMPF | METAL MOBILE PEDESTAL - FULL CARTON | 1 |
| 100-MMPF-CUSHFA | METAL MOBILE PEDESTAL CUSHION | 1 |
Included items are limited to the components listed above. Please contact us to confirm finish selection, stock availability, delivery and installation.
Choose your finish
Autumn Maple (AM)
Black Walnut (BW)
Evening Zen (EZ)
Grey Dusk (GD)
Hardrock Maple (HM)
Royal Mahogany (RM)
Sugar Maple (SM)
Winter Wood (WW)
Choose your finish from the product options above. The finish applies to Innovations laminate surfaces; metal, glass and upholstered parts retain their standard finishes. Photos may show accessories; only the components listed above are included. Finish samples may vary slightly from actual material.
