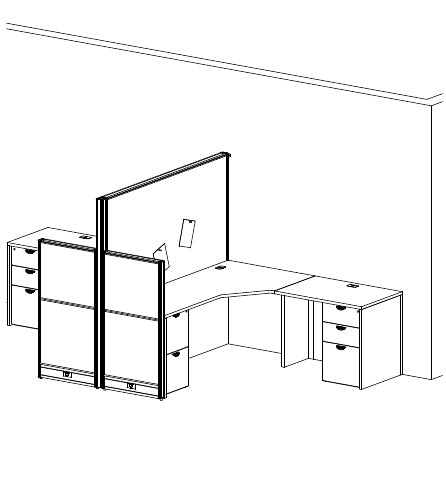

Complete HDL Framework Panel System Layout 3. Includes the panels, connecting hardware and furniture listed for the selected configuration.
Grey woven fabric panels with charcoal powder-coated frames. Panels are tackable above work surface height. Clear glazed panels and plexiglass extensions are included only where listed.
| Item | Description | Quantity |
|---|---|---|
| FRM-7266P | 66” TALL PANEL | 1 |
| FRM-2448P | 48” TALL PANEL | 2 |
| FRM-66SQP-3W | SQUARE 3 WAY CONNECTING POST | 1 |
| FRM-48PET | PANEL END TRIM | 2 |
| FRM-FWMB | FLUSH WALL MOUNT BRACKET SET (HIDDEN AFTER INSTALL). | 1 |
| INV-7236CM | EXTENDED CORNER MODULE | 1 |
| INV-3672CM | EXTENDED CORNER MODULE | 1 |
| INV-2436RSBR | RETURN SHELL/BRIDGE | 2 |
| INV-FPFF | FREESTANDING PEDESTAL - NO TOP | 2 |
| INV-FPUF | FREESTANDING PEDESTAL - NO TOP | 2 |

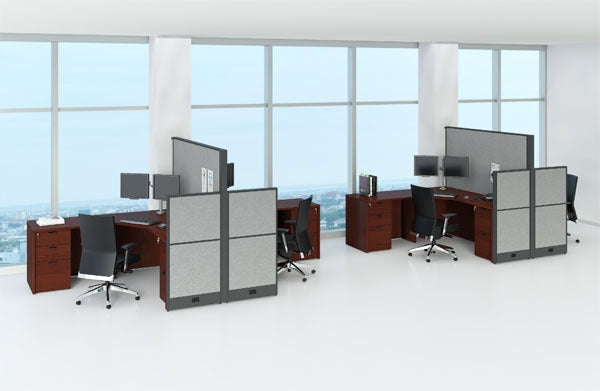

Photos illustrate the arrangement; chairs, computers and decorative items are not included. Only the listed components are included. Assembly is required. Electrical accessories, delivery and installation are separate unless specified.
Furniture finish applies to Innovations laminate furniture; panels remain grey fabric with charcoal frames.
