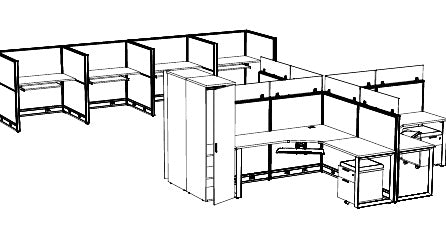

Complete HDL Framework Panel System Layout 16. Includes the panels, connecting hardware and furniture listed for the selected configuration.
Grey woven fabric panels with charcoal powder-coated frames. Panels are tackable above work surface height. Clear glazed panels and plexiglass extensions are included only where listed.
| Item | Description | Quantity |
|---|---|---|
| FRM-4848P | 48” TALL PANEL | 4 |
| FRM-4248P | 48” TALL PANEL | 5 |
| FRM-3648P | 48” TALL PANEL | 8 |
| FRM-48SQP-2W | SQUARE 2 WAY CONNECTING POST | 2 |
| FRM-48SQP-3W | SQUARE 3 WAY CONNECTING POST | 3 |
| FRM-48SQP-4W | SQUARE 4 WAY CONNECTING POST | 1 |
| FRM-48PET | PANEL END TRIM | 9 |
| FRM-PCK | PANEL CONNECTING KIT | 4 |
| FRM-1036PLX | PLEXIGLASS PANEL EXTENSION | 8 |
| INV-362472ECM | EXTENDED CORNER MODULE | 4 |
| INV-2436RET-LOOP | 36” RETURN WITH LOOP LEGS | 4 |
| 900-LOOP24 | 24” METAL LOOP LEG | 4 |
| INV-MPF | 21” MOBILE PEDESTAL - FULL CARTON | 4 |
| INV-CUSH | MOBILE PEDESTAL SEAT CUSHION | 4 |
| 100-AKTM-2 | ARTICULATING KEYBOARD TRAY | 4 |
| INV-6518WC | WARDROBE / STORAGE CABINET | 2 |
| INV-2448TOP | 48” RECTANGLE TOP | 4 |
| FRM-WSMK | WORKSURFACE MOUNTING KIT | 8 |
| 100-WSB-52 | 52” STIFFENER BAR | 4 |
| 100-KD28 | KEYBOARD DRAWER | 4 |

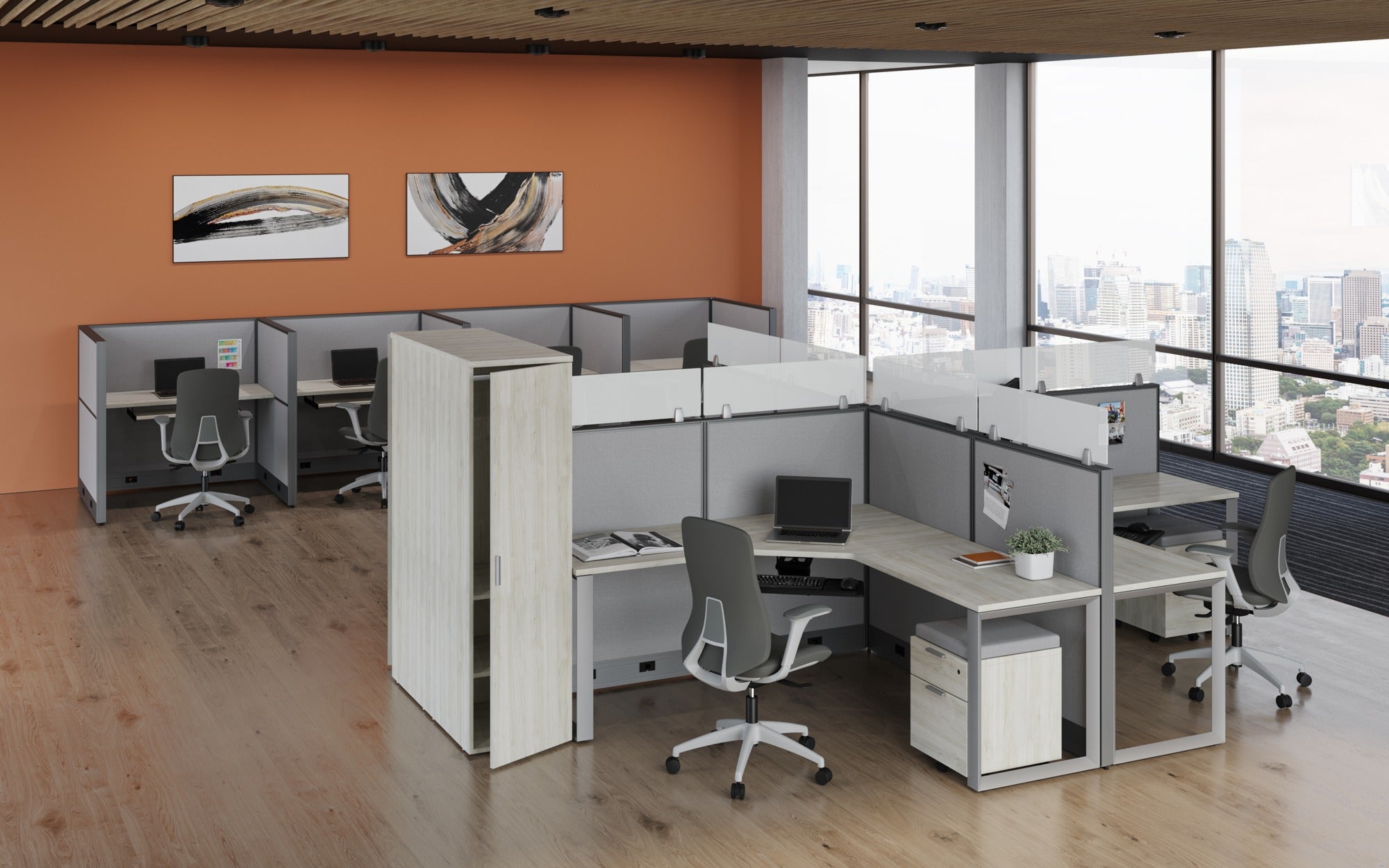

Photos illustrate the arrangement; chairs, computers and decorative items are not included. Only the listed components are included. Assembly is required. Electrical accessories, delivery and installation are separate unless specified.
Furniture finish applies to Innovations laminate furniture; panels remain grey fabric with charcoal frames.
