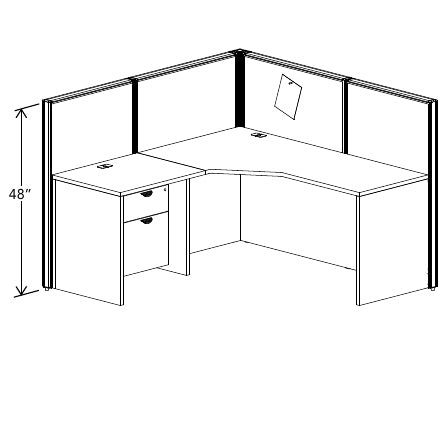

Layout dimensions
Measurements are from the HDL 2026 pricebook. Component dimensions are width × depth × height in inches.
| Panel height | 48 in |
|---|
Overall assembled footprint is not dimensioned in the pricebook. Component sizes below are width × depth × height; connecting posts and the selected arrangement affect the total footprint.
Included component sizes
| Component | Width × depth × height |
|---|---|
| FRM-3048P — 48” TALL PANEL | 29.5 in × 2.36 in × 48 in |
| FRM-3648P — 48” TALL PANEL | 35.4 in × 2.36 in × 48 in |
| FRM-48SQP-2W — SQUARE 2 WAY CONNECTING POST | 2.36 in × 2.36 in × 48 in |
| FRM-48PET — PANEL END TRIM | 1.6 in × 0.23 in × 46.8 in |
| FRM-PCK — PANEL CONNECTING KIT | 2.9 in × 3.9 in × 2.9 in |
| INV-2430RSBR — NON-HANDED RETURN SHELL/BRIDGE | 29.5 in × 23.75 in × 29 in |
| INV-3666CM — EXTENDED CORNER MODULE | 65 in × 35.5 in × 29 in |
| INV-HPF — HANGING PEDESTAL | 15.75 in × 21.75 in × 20.5 in |
For corner desktops, a depth written with a slash indicates the two surface depths. Dimensions describe furniture and panels, not the extra space needed for chairs or walkways.
Complete HDL Framework Panel System Layout 1. Includes the panels, connecting hardware and furniture listed for the selected configuration.
Grey woven fabric panels with charcoal powder-coated frames. Panels are tackable above work surface height. Clear glazed panels and plexiglass extensions are included only where listed.
| Item | Description | Quantity |
|---|---|---|
| FRM-3048P | 48” TALL PANEL | 2 |
| FRM-3648P | 48” TALL PANEL | 2 |
| FRM-48SQP-2W | SQUARE 2 WAY CONNECTING POST | 1 |
| FRM-48PET | PANEL END TRIM | 2 |
| FRM-PCK | PANEL CONNECTING KIT | 2 |
| INV-2430RSBR | NON-HANDED RETURN SHELL/BRIDGE | 1 |
| INV-3666CM | EXTENDED CORNER MODULE | 1 |
| INV-HPF | HANGING PEDESTAL | 1 |
Photos illustrate the arrangement; chairs, computers and decorative items are not included. Only the listed components are included. Assembly is required. Electrical accessories, delivery and installation are separate unless specified.
Furniture finish applies to Innovations laminate furniture; panels remain grey fabric with charcoal frames.
